Brand Name : Tecgen Power
Model Number : TG18YDSD6
Certification : CE / SASO / SONCAP / COC / PVOC
Place of Origin : Fuzhou, China
MOQ : 1 unit
Price : 2000$
Payment Terms : T/T, L/C
Supply Ability : 200 Units Per Month
Delivery Time : 20 Days
Packaging Details : Stretch film packaging or Polywooden Package
Type : Soundproof
Color : RAL or customed
Frequency : 60Hz / 1800rpm
Prime Power : 16kVA
Standby power : 18kVA
Engine : Yangdong YD480D
Engine power : 16kW / 18kW
Output Type : AC Three Phase or Single Phase
60Hz diesel generators 16kVA Yangdong genset silent type with 18 months warranty
Product Description for 60Hz Diesel Generators
Key Features:
Standard Features:
16kVA 60Hz Diesel Generator Technical Specifications:
60Hz Diesel Generator Technical Datasheets | ||||||
Genset model | TG18YDSD6 | |||||
Genset Type | Silent | |||||
Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
Frequency | 60Hz | |||||
Speed | 1800rpm | |||||
Output Type | AC Three Phase | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 19.2A | |||||
Prime Power | 13kW / 16kVA | |||||
Standby Power | 14kW / 18kVA | |||||
Diesel Engine | Brand | Yangdong | ||||
Model | YD480D | |||||
AC Alternator | Brand | Tecgen Power | ||||
Model | TGI164S13 | |||||
Genset Controller | Brand | Smartgen | ||||
Model | HGM6110N | |||||
Genset Weight | 755kgs | |||||
Genset Dimensions | L2100 * W 900 * 1000 | |||||
Fuel Tank Capacity | 10 running hours | |||||
Yangdong Diesel Engine Data | ||||||
Brand | Yangdong | |||||
Engine Model | YD480D | |||||
Number of Cylinders | 4 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Natural Aspiration | |||||
Displacement | 1.809L | |||||
Compression ratio | 18:1 | |||||
Bore×Stroke | 80*90mm | |||||
Speed | 1800rpm | |||||
Prime Power | 16kW | |||||
Standby Power | 18kW | |||||
Speed Governor | MECH or Electrical | |||||
Cooling System | Forced water cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 250g/kwh@1800rpm | |||||
AC Alternator Data | ||||||
Brand | Tecgen Power | |||||
Model | TGI164S13 | |||||
Frequency/speed | 50HZ/1800RPM | |||||
Rate Output | 13kW | |||||
No. of Phase | 3 Phase, 4 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
Genset Controller System | ||||||
Controller System | Brand | Smargen | ||||
Model | HGM6110N | |||||
Functions | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Set Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin | Leroy Somer / Stamford / Mecc Alte / Tecgen
| DEIF | Open/Silent | ||
7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage:
Options:
Warranty:
FAQ:
With its reliable performance, efficient fuel consumption, and user-friendly controls, our 60Hz Diesel Generators with Yangdong Genset are the perfect choice for your power generation needs. Contact us today for more information and to discuss your specific requirements.
![]() |

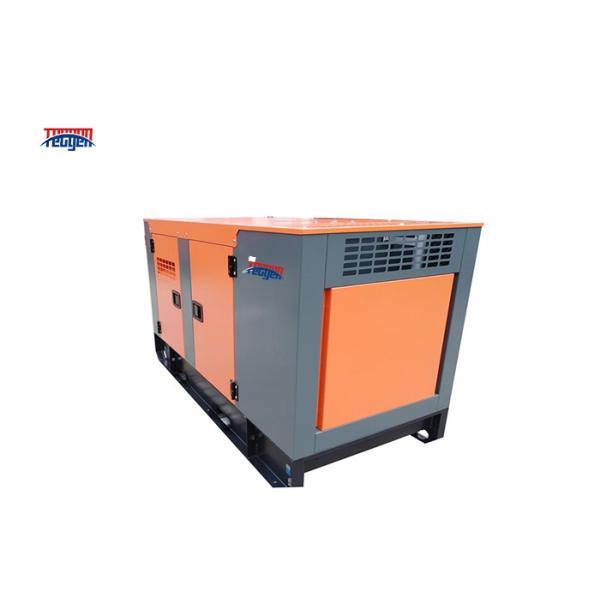

60Hz Diesel Generators 16kVA Yangdong Genset Silent Type With 18 Months Warranty Images |
