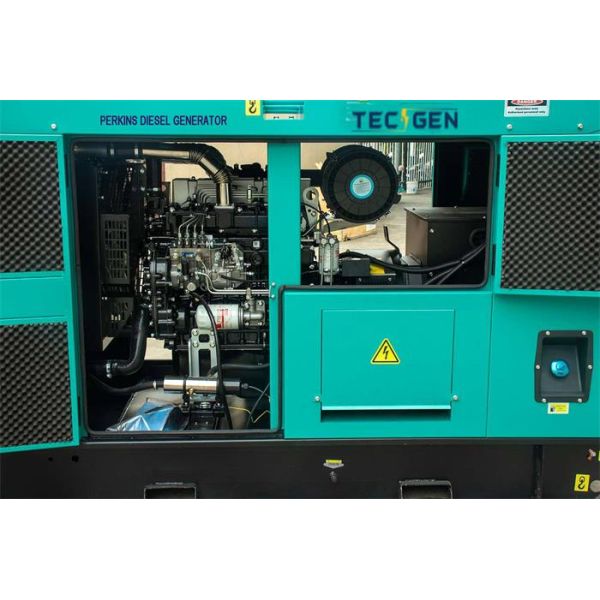

Continuous 69kVA power generator silent Perkins genset with 1800rpm diesel engine for continuous
Product Description: Premium Continuous 69kVA Power Generator with Perkins Genset
Standard Features:
Introducing our flagship product, the TG76PSD6 Continuous 69kVA Power Generator, powered by the reliable Perkins 1103A-33TG2 engine. This silent generator boasts a robust design and exceptional performance, making it the ideal solution for a wide range of applications. Equipped with a 3-phase, 4-wire output system operating at 220V and 60Hz, it ensures a stable and continuous power supply. The unit's prime power rating of 55kW and standby power of 61kW guarantee seamless power backup during emergencies or routine usage.
Key Features:
- Powerful Perkins Engine: At the heart of this generator lies the 65kW Perkins 1103A-33TG2 engine, known for its durability, fuel efficiency, and low maintenance requirements. Its turbocharged aspiration and indirect injection system optimize combustion, ensuring clean and powerful energy output.
- Advanced Alternator: The TGI224S55 alternator, crafted by Tecgen, offers a rate output of 69kVA with a sturdy H-class insulation system, ensuring long-lasting performance and reliability.
- Intelligent Control: The SGC-420 controller from DEIF integrates AMF (Automatic Mains Failure) module, automatic battery charger, and emergency stop button, simplifying operation and enhancing safety. With CAN bus connectivity for ATS (Auto Transfer Switch), seamless integration with your power management system is achieved.
- Compact & Silent Design: Measuring 2690mm in length, 1050mm in width, and 1300mm in height, this generator is designed for easy portability and installation. Its sound-proof enclosure ensures minimal noise pollution, making it suitable for residential and commercial use alike.
Continuous 69kVA Power Generator Datasheets:
| Technical Specification: |
| Continuous 69kVA Power Generator Specification |
| Genset Model | TG76PSD6 |
| Silent |
| Frequency | 60Hz |
| Voltage | 220V |
| Phase | 3 Phase, 4 Wires |
| Rate Current | 180.4A |
| Prime Power | 55W / 69 kVA |
| Standby Power | 61kW / 76kVA |
| Engine Model | Perkins 1103A-33TG2 |
| Alternator Model | TGI224S55 |
| ATS | 250A Auto Transfer Switch Box |
| Controller | SGC-420 |
| Genset Weight & Dimensions |
| Length (mm) | 2690 |
| width (mm) | 1050 |
| Height (mm) | 1300 |
| Weight (kgs) | 1500 |
| Perkins Engine Specification |
| Brand | Perkins (India) |
| Engine Model | 1103A-33TG2 |
| Prime power | 65kW |
| Injection | Indirect |
| Aspiration | Turbocharged |
| No. of cylinders | 3 |
| Bore of Stroke (mm) | 105 x 127 |
| Displacement (L) | 3.3 |
| Cooling | water |
| Compression Ratio | 17.25:1 |
| Engine Oil capacity (L) | 4.4 |
| Coolant Capacity ( In radiator) | 10.2 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | @ 60Hz |
| 100% Load (L/h) | 16.6 |
| 75% Load (L/h) | 12.5 |
| 50% Load (L/h) | 8.8 |
| 25% Load (L/h) | 5.1 |
| AC Alternator Specification |
| Brand | Tecgen |
| Model | TGI224S55 |
| Rate Output | 69kVA |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection, CAN |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts |
Usage:
The TG76PSD6 Continuous 69kVA Power Generator is perfect for hospitals, data centers, construction sites, events, and any critical infrastructure requiring a reliable backup power source. It can seamlessly take over during power outages, ensuring uninterrupted operations and safeguarding against data loss or equipment damage.
Advantage:
- Fuel Efficiency: With fuel consumption as low as 5.1L/h at 25% load, the Perkins engine ensures cost-effective operation over extended periods.
- High Altitude Compatibility: Capable of operating at altitudes up to 1000 meters, this generator adapts to various environments with ease.
- Durability & Maintenance: The robust construction and quality components ensure long service life, while easy access to engine components simplifies routine maintenance.
- Versatile Options: A range of optional equipment, including ATS boxes, remote control, and daily fuel tanks, enhances the generator's versatility and convenience.
Options:
- Add an ATS Box for seamless transfer of power between the generator and the mains supply.
- Equip with a Remote Control System for convenient monitoring and operation from a distance.
- Choose the Super Silent Type enclosure for even lower noise levels, ideal for noise-sensitive environments.
- Include a Trailer Type mount for easy transportation and deployment.
FAQs:
- Q: What is the maximum altitude this generator can operate at?
- A: The TG76PSD6 can operate at altitudes up to 1000 meters without any derating.
- Q: How does the SGC-420 controller enhance safety?
- A: The controller includes an emergency stop button and integrates with ATS for automatic power transfer, minimizing downtime and ensuring safe operation.
- Q: Can I customize the fuel tank size?
- A: Yes, you can opt for a daily fuel tank to suit your specific needs and operational requirements.
Experience the peace of mind that comes with the TG76PSD6 Continuous 69kVA Power Generator, backed by the renowned Perkins Genset technology. Order now and secure a reliable power solution for your critical applications.
